Construction Industrial XLPE Low Votage Wire 240mm Electrical Power Cable with Cheap Price

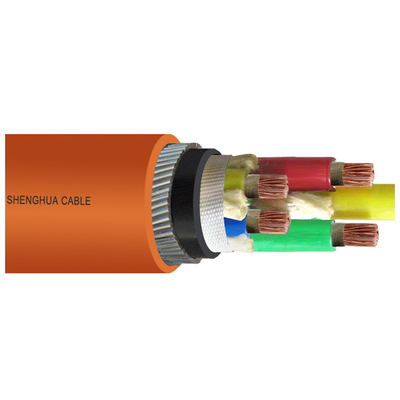

Large Image : Construction Industrial XLPE Low Votage Wire 240mm Electrical Power Cable with Cheap Price

Product Details:

Certification:	ISO, CCC, CE, RoHS, VDE

Contact Now

Construction Industrial XLPE Low Votage Wire 240mm Electrical Power Cable with Cheap Price

Description

Model NO.:	CU/XLPE/SWA/PVC-0.6/1KV 3x185+1x95 Mm2	Current:	AC Cable
Insulation Material:	XLPE	Sheath Material:	PVC
Material Shape:	Round Wire	Wire Core Material:	Bare Copper Wire
Model:	Yjv32	Brand:	Shanghai Shenghua
Armored:	Galvanized Steel Wire	Conductor:	Straned Copper
Insulation:	XLPE	Insulation Color:	Red,Black,Yellow,Green
Jacket:	PVC	Inner Sheath:	PVC
Rated Voltage:	600/1000V	Standard:	IEC60502
Bending Radius:	12X Cable O.D	Test Voltage:	3.5kv/5mins
Sample:	Free	Apply:	Power Station
Working Temp:	90 ºC	Certificate:	Kema
Dia Of Swa:	2.5mm	Transport Package:	500m/Reel
Specification:	3x185+1x95	Trademark:	SHAN CABLE
Origin:	Shanghai China	HS Code:	8544492100
Supply Ability:	9853km/Week

Steel Wire Armored XLPE Insulated Electrical Powwr Cable CU/XLPE/SWA/PVC-0.6/1KV 3x185+1x95 mm2

Construction:

Conductor      : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation      : XLPE(cross-linked polyethylene) rated at 90^OC
Inner covering : PVC
Armoring       : Galvanized steel wire
Sheath         : PVC type ST₂ to IEC 60502, black
Code Designation:
YJ: XLPE insulation
V: PVC sheath
32: Galvanized steel wire armoring
ZR: Flame resistant
Applications:
Apply to shafts,water and soil,able to bear the larger positive pressure.
Standards:
International: IEC 60502, IEC 60228, IEC 60332
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Technical Data
Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90^OC), emergency (130^OC) or short circuit no more than 5 s (250ºC) conditions.
Min. Ambient Temp.  0^OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 12 x cable O.D
Certificates:
CE, RoHS, CCC, KEMA and more others at request

Detail Specifications:

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Inner Covering Thickness	Dia. Of Armor Wire	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ºC)	Testing Voltage A.C	Current Rating
mm²	pc/mm	mm			mm	(mm)	kg/km	Ω /km	kV/5min	In air (A)	In soil(A)
2 × 1.5	1/1.38	0.7	1.0	0.9	1.8	15.0	330	12.1	3.5	20	27
2 × 2.5	1/1.78	0.7	1.0	0.9	1.8	16.0	376	7.41	3.5	26	35
2 × 4	1/2.25	0.7	1.0	0.9	1.8	17.0	554	4.61	3.5	34	45
2 × 6	1/2.76	0.7	1.0	0.9	1.8	18.2	633	3.08	3.5	43	57
2 × 10	7/1.38	0.7	1.0	1.25	1.8	21.0	797	1.83	3.5	60	77
2 × 16	7/1.78	0.7	1.0	1.60	1.8	23.5	1124	1.15	3.5	83	105
2 × 25	7/2.14	0.9	1.0	1.6	1.8	26.0	1417	0.727	3.5	105	125
2 × 35	7/2.52	0.9	1.0	1.6	1.8	30.5	1694	0.524	3.5	125	155
2 × 50	10/2.52	1.0	1.0	1.6	1.8	27.0	1787	0.387	3.5	160	185
2 × 70	14/2.52	1.1	1.0	1.6	2	30.0	2181	0.268	3.5	200	225
2 × 95	19/2.52	1.1	1.2	1.6	2.1	34.0	2768	0.193	3.5	245	270
2 × 120	24/2.52	1.2	1.2	2.0	2.2	36.5	3500	0.153	3.5	285	310
2 × 150	30/2.52	1.4	1.2	2.0	2.4	42.0	4233	0.124	3.5	325	345
2 × 185	37/2.52	1.6	1.2	2.0	2.5	45.0	4979	0.0991	3.5	375	390
3 × 1.5	1/1.38	0.7	1.0	0.9	1.8	15.8	359	12.1	3.5	20	27
3 × 2.5	1/1.78	0.7	1.0	0.9	1.8	16.8	415	7.41	3.5	26	35
3 × 4	1/2.25	0.7	1.0	0.9	1.8	18.0	611	4.61	3.5	34	45
3 × 6	1/2.76	0.7	1.0	0.9	1.8	19.0	718	3.08	3.5	43	57
3 × 10	7/1.38	0.7	1.0	1.25	1.8	22.0	937	1.83	3.5	60	77
3 × 16	7/1.78	0.7	1.0	1.60	1.8	24.5	1318	1.15	3.5	83	105
3 × 25	7/2.14	0.9	1.0	1.6	1.8	29.2	1707	0.727	3.5	105	125
3 × 35	7/2.52	0.9	1.0	1.6	1.8	32.5	2071	0.524	3.5	125	155
3 × 50	10/2.52	1.0	1.0	1.6	1.9	33.0	2405	0.387	3.5	160	185
3 × 70	14/2.52	1.1	1.0	1.6	2.0	37.0	3084	0.268	3.5	200	225
3 × 95	19/2.52	1.1	1.2	1.6	2.1	43.0	4126	0.193	3.5	245	270
3 × 120	24/2.52	1.2	1.2	2.0	2.3	45.0	4901	0.153	3.5	285	310
3 × 150	30/2.52	1.4	1.4	2.0	2.4	51.0	6365	0.124	3.5	325	345
3 × 185	37/2.52	1.6	1.4	2.0	2.6	56.0	7555	0.0991	3.5	375	390
3 × 240	48/2.52	1.7	1.4	2.5	2.8	62.0	9284	0.0754	3.5	440	450
3 × 300	61/2.52	1.8	1.6	2.5	3.0	67.0	11226	0.0601	3.5	505	515
3 × 400	61/2.97	2.0	1.6	2.5	3.2	74.0	15714	0.0470	3.5	570	575
4 × 4	1/2.25	0.7	1.0	0.9	1.8	18.0	699	4.61	3.5	34	45
4 × 6	1/2.76	0.7	1.0	1.25	1.8	19.0	820	3.08	3.5	43	57
4 × 10	7/1.38	0.7	1.0	1.25	1.8	22.0	1233	1.83	3.5	60	77
4 × 16	7/1.78	0.7	1.0	1.6	1.8	24.5	1550	1.15	3.5	83	105
4 × 25	7/2.14	0.9	1.0	1.6	1.8	29.2	2036	0.727	3.5	105	125
4 × 35	7/2.52	0.9	1.0	2.0	1.9	32.5	2501	0.524	3.5	125	155
4 × 50	10/2.52	1.0	1.0	2.0	2.0	33.0	3064	0.387	3.5	160	185
4 × 70	14/2.52	1.1	1.0	2.0	2.1	37.0	3974	0.268	3.5	200	225
4 × 95	19/2.52	1.1	1.2	2.0	2.3	43.0	5032	0.193	3.5	245	270
4 × 120	24/2.52	1.2	1.2	2.5	2.5	45.0	6327	0.153	3.5	285	310
4 × 150	30/2.52	1.4	1.4	2.5	2.7	51.0	7765	0.124	3.5	325	345
4 × 185	37/2.52	1.6	1.4	2.5	2.8	56.0	9205	0.0991	3.5	375	390
4 × 240	48/2.52	1.7	1.4	2.5	3.0	62.0	11444	0.0754	3.5	440	450
4 × 300	61/2.52	1.8	1.6	2.5	3.2	67.0	13830	0.0601	3.5	505	515
4 × 400	61/2.97	2.0	1.6	3.15	3.5	74.0	19673	0.0470	3.5	570	575
5 × 4	1/2.25	0.7	1.0	1.25	1.8	20.0	783	4.61	3.5	34	45
5 × 6	1/2.76	0.7	1.0	1.25	1.8	22.4	946	3.08	3.5	43	57
5× 10	7/1.38	0.7	1.0	1.6	1.8	25.8	1398	1.83	3.5	60	77
5 × 16	7/1.78	0.7	1.0	1.6	1.8	29.0	1784	1.15	3.5	83	105
5 × 25	7/2.14	0.9	1.0	1.6	1.8	34.2	2378	0.727	3.5	105	125
5 × 35	7/2.52	0.9	1.0	1.6	1.9	37.8	3237	0.524	3.5	125	155
5× 50	10/2.52	1.0	1.2	2.0	2.1	43.2	3994	0.387	3.5	160	185
5× 70	14/2.52	1.1	1.2	2.0	2.3	49.0	5514	0.268	3.5	200	225
5× 95	19/2.52	1.1	1.4	2.5	2.5	55.0	6816	0.193	3.5	245	270
5 × 120	24/2.52	1.2	1.4	2.5	2.6	61.0	8174	0.153	3.5	285	310
5 × 150	30/2.52	1.4	1.4	2.5	2.8	67.8	9859	0.124	3.5	325	345
5 × 185	37/2.52	1.6	1.6	2.5	3.0	74.3	11805	0.0991	3.5	375	390
5 × 240	48/2.52	1.7	1.6	3.2	3.3	83.0	15706	0.0754	3.5	440	450
3 × 4+ 1 × 2.5	1/2.25+1/1.38	0.7	1.0	0.9	1.8	18.7	624	4.61	3.5	34	45
3 × 6+ 1 × 4	1/2.76+1/2.25	0.7	1.0	0.9	1.8	20.0	752	3.08	3.5	43	57
3 × 10+ 1 × 6	7/1.38+1/2.8	0.7	1.0	1.25	1.8	23.3	1154	1.83	3.5	60	77
3 × 16+ 1 × 10	7/1.78+7/1.38	0.7	1.0	1.25	1.8	25.8	1456	1.15	3.5	83	105
3 × 25+ 1 × 16	7/2.14+7/1.78	0.9	1.0	1.6	1.8	30.0	1905	0.727	3.5	105	125
3 × 35+ 1 × 16	7/2.52+7/1.78	0.9	1.0	1.6	1.8	33.0	2259	0.524	3.5	125	155
3 × 50+ 1 × 25	10/2.52+7/2.14	1.0	1.0	1.6	1.9	35.5	2705	0.387	3.5	160	185
3 × 70+ 1 × 35	14/2.52+7/2.52	1.1	1.0	2.0	2.0	41.0	3729	0.268	3.5	200	225
3 × 95+ 1 × 50	19/2.52+10/2.52	1.1	1.2	2.0	2.1	46.0	4732	0.193	3.5	245	270
3 × 120+ 1 × 70	24/2.52+14/2.52	1.2	1.2	2.0	2.3	51.0	6071	0.153	3.5	285	310
3 × 150+ 1 × 70	30/2.52+14/2.52	1.4	1.4	2.5	2.4	56.5	7198	0.124	3.5	325	345
3 × 185+ 1 × 95	37/2.52+19/2.52	1.6	1.4	2.5	2.6	62.0	8558	0.0991	3.5	375	390
3 × 240+ 1 × 120	48/2.52+24/2.52	1.7	1.4	2.5	2.8	68.0	10580	0.0754	3.5	440	450
3 × 300+ 1 × 150	61/2.52+30/2.52	1.8	1.6	2.5	3.0	75.0	12742	0.0601	3.5	505	515
3 × 4+ 2 × 2.5	1/2.25+1/1.38	0.7	1.0	0.9	1.8	18.7	735	4.61	3.5	34	45
3 × 6+ 2 × 4	1/2.76+1/2.25	0.7	1.0	1.25	1.8	21.0	879	3.08	3.5	43	57
3 × 10+ 2 × 6	7/1.38+1/2.8	0.7	1.0	1.25	1.8	24.2	1263	1.83	3.5	60	77
3 × 16+ 2 × 10	7/1.78+7/1.38	0.7	1.0	1.6	1.8	27.5	1616	1.15	3.5	83	105
3 × 25+ 2 × 16	7/2.14+7/1.78	0.9	1.0	1.6	1.8	32.5	2142	0.727	3.5	105	125
3 × 35+ 2 × 16	7/2.52+7/1.78	0.9	1.0	1.6	1.9	35.5	2492	0.524	3.5	125	155
3 × 50+ 2 × 25	10/2.52+7/2.14	1.0	1.0	2.0	2.2	40.0	3408	0.387	3.5	160	185
3 × 70+ 2 × 35	14/2.52+7/2.52	1.1	1.0	2.0	2.4	45.6	4338	0.268	3.5	200	225
3 × 95+ 2 × 50	19/2.52+10/2.52	1.1	1.2	2.0	2.6	50.0	5374	0.193	3.5	245	270
3 × 120+ 2 × 70	24/2.52+14/2.52	1.2	1.2	2.5	2.7	56.9	7145	0.153	3.5	285	310
3 × 150+ 2 × 70	30/2.52+14/2.52	1.4	1.4	2.5	2.9	62.4	8076	0.124	3.5	325	345
3 × 185+ 2 × 95	37/2.52+19/2.52	1.6	1.4	2.5	3.0	67.6	9779	0.0991	3.5	375	390
3 × 240+ 2 × 120	48/2.52+24/2.52	1.7	1.4	2.5	3.2	73.8	12024	0.0754	3.5	440	450
3 × 300+ 2 × 150	61/2.52+30/2.52	1.8	1.6	3.15	3.4	83.0	14366	0.0601	3.5	505	515
4 × 4+ 1 × 2.5	1/2.25+1/1.38	0.7	1.0	0.9	1.8	20.0	752	4.61	3.5	34	45
4 × 6+ 1 × 4	1/2.76+1/2.25	0.7	1.0	1.25	1.8	21.5	913	3.08	3.5	43	57
4 × 10+ 1 × 6	7/1.38+1/2.8	0.7	1.0	1.25	1.8	25.0	1323	1.83	3.5	60	77
4 × 16+ 1 × 10	7/1.78+7/1.38	0.7	1.0	1.6	1.8	28.6	1691	1.15	3.5	83	105
4 × 25+ 1 × 16	7/2.14+7/1.78	0.9	1.0	1.6	1.8	33.5	2256	0.727	3.5	105	125
4 × 35+ 1 × 16	7/2.52+7/1.78	0.9	1.0	1.6	1.9	36.0	2957	0.524	3.5	125	155
4 × 50+ 1 × 25	10/2.52+7/2.14	1.0	1.2	2.0	2.2	42.0	3643	0.387	3.5	160	185
4 × 70+ 1 × 35	14/2.52+7/2.52	1.1	1.2	2.0	2.4	47.0	4614	0.268	3.5	200	225
4 × 95+ 1 × 50	19/2.52+10/2.52	1.1	1.2	2.0	2.6	51.2	6140	0.193	3.5	245	270
4 × 120+ 1 × 70	24/2.52+14/2.52	1.2	1.4	2.5	2.8	59.0	7544	0.153	3.5	285	310
4 × 150+ 1 × 70	30/2.52+14/2.52	1.4	1.4	2.5	3.0	64.0	8733	0.124	3.5	325	345
4 × 185+ 1 × 95	37/2.52+19/2.52	1.6	1.6	2.5	3.1	71.0	10597	0.0991	3.5	375	390
4 × 240+ 1 × 120	48/2.52+24/2.52	1.7	1.6	2.5	3.3	78.0	13029	0.0754	3.5	440	450
4 × 300+ 1 × 150	61/2.52+30/2.52	1.8	1.6	3.15	3.5	88.0	17172	0.0601	3.5	505	515

Packing and Packing Photo

500m/wooden drum or 1000m/wooden drum.
