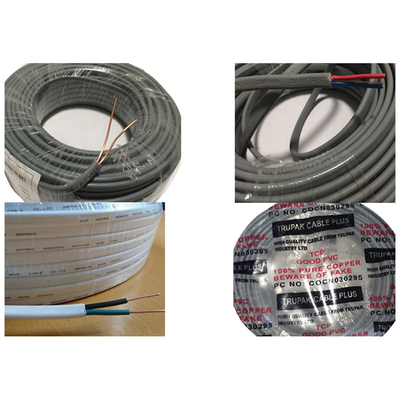

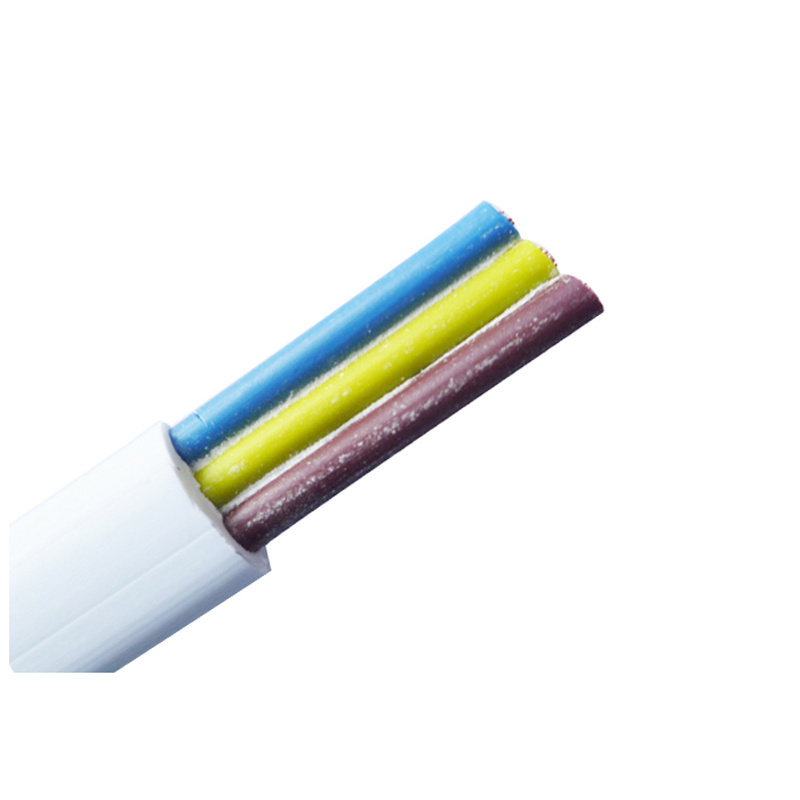

Long Lasting Electrical Cable Wire for Outdoor Use

Large Image : Long Lasting Electrical Cable Wire for Outdoor Use

Product Details:

Certification:	CE, CCC, RoHS

Contact Now

Long Lasting Electrical Cable Wire for Outdoor Use

Description

Model NO.:	BV	Application:	House Wire
Conductor Material:	Copper	Sheath Material:	PVC
Insulation Material:	PVC	Material Shape:	Round Wire
Range Of Application:	Fire Resistant	Brand:	Xinxin
Core:	Single Core And Multiple Core	Testing Voltage 5 Minute:	3.5kv
Rated Voltage:	0.6/1kv	Working Temp. Of Conductor:	90ºC
Min.Installation Temp:	>0ºC	Transport Package:	Roll
Specification:	Copper/PVC	Origin:	China
HS Code:	85444921	Supply Ability:	10km/Day

Descriptions

Single-core non-sheathed cables with rigid conductor for general purposes

Code designation: 60227 IEC 05 (International), BV 300/500V(China)
H05VV-F/H05VV-R

Constructions

1.Conductor: Plain circular solid copper conductor, comform to IEC 60228 class 1
2.Insulation: PVC

Applications

Used as fixed wiring cable of rated voltage 300/500V.

Standards

International: IEC 60227

China: GB/T 5023-2008

Other standards such as BS, DIN and ICEA upon request

Technical data

Rated voltage:300/500 V

Max. Conductor Temp. in normal use: 70 ºC

Min. Bending Radius: 4 x cable O.D

Certificates

CE, RoHS, CCC, KEMA and more others at request

Specifications
Long Lasting Electrical Cable Wire for Outdoor Use 0
