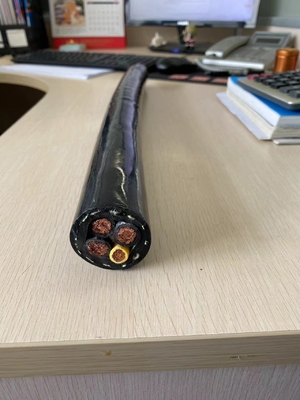

PUR Jacket Winding Reels Cable Ts-Crane Hpjmce-0.6/1kv 4X50 mm2

PUR Jacket Winding Reels Cable Ts-Crane Hpjmce-0.6/1kv 4X50 mm2
PUR Jacket Winding Reels Cable Ts-Crane Hpjmce-0.6/1kv 4X50 mm2 PUR Jacket Winding Reels Cable Ts-Crane Hpjmce-0.6/1kv 4X50 mm2 PUR Jacket Winding Reels Cable Ts-Crane Hpjmce-0.6/1kv 4X50 mm2 PUR Jacket Winding Reels Cable Ts-Crane Hpjmce-0.6/1kv 4X50 mm2 PUR Jacket Winding Reels Cable Ts-Crane Hpjmce-0.6/1kv 4X50 mm2 PUR Jacket Winding Reels Cable Ts-Crane Hpjmce-0.6/1kv 4X50 mm2

Large Image :  PUR Jacket Winding Reels Cable Ts-Crane Hpjmce-0.6/1kv 4X50 mm2

Product Details:
Certification: ISO9001, CE, CCC, RoHS, VDE
Contact Now

PUR Jacket Winding Reels Cable Ts-Crane Hpjmce-0.6/1kv 4X50 mm2

Description
Model NO.: TS-CRANE HPJMCE-0.6/1KV 4x50 Mm2 Application: Wind
Conductor Material: Copper Sheath Material: PUR
Insulation Material: PVC Material Shape: Round Wire
Range Of Application: Wind Brand: Shanghai Shenghua
Conductor: Flexible Tinned Copper Wire Insulation: Thermoplastic Rubber TPV
Tensile Braid: Kevlar Tensile Braid. Inner Sheath: PUR (Black)
Jacket Material: PUR (Black) Tensile Strength: 20 Mn/M2
Rated Voltage: 600/1000V Test Voltage: 4000V/5min
Sample: Available Conductor Resistance: 0.38Ω/Km
Jacket Thickness: 3.0mm Insulation Thickness: 1.40mm
Jacket Characteristics: Wear-Resistant,Oil-Resistant Chemical Characteristic: Acid And Alkali Resistant
Insulation Color: Brown,Black,Grey,Yellow/Green Transport Package: 1000m/Reel
Specification: 4x50mm2 Trademark: SHAN CABLE
Origin: Shanghai China HS Code: 8544492100
Supply Ability: 2753km/Week

PUR Jacket Winding Reels Cable TS-CRANE HPJMCE-0.6/1KV 4x50 mm2

1.Applicable Scope
Cable Type :TS-CRANE-HPJMCE -0.6/1KV 4X50mm²
2.Technical Specifications:

Diagrammatic cross-section Insulation Color
     PUR Jacket Winding Reels Cable Ts-Crane Hpjmce-0.6/1kv 4X50 mm2 0
Brown,Black,Grey,Yellow/Green
Marking on the Surface

Shanghai shenghua Cable GroupTS-CRANE-HPJMCE  4X50mm²   0.6/1KV   CE
 Cable Construction
Cable Size 4X50mm² /
Conductor material Flexible tinned copper wire /
Conductor Stranded No./Dia 1018/0.25±0.008mm /
Conductor Dia after stranded 10.0mm /
Insulation Material Thermoplastic Rubber TPV /
Diameter after insulation 13.0±0.4mm /
Insulation Min Thickness 1.20mm /
Insulation Average Thickness 1.40mm /
Filler Tensile Core filling
Inner sheath Material PUR (Black)
Inner sheath Thickness 1.20mm
Tensile Braid Material. Kevlar Tensile Braid.
Jacket Material PUR(Black)
Jacket Average Thickness 3.00mm
Jacket Min Thickness 2.45mm
Total Cable O.D 40.2±1.5mm
Electrical Characteristics Jacket Physical Properties
Conductor resistance at 20ºC :≤ 0.386Ω/km Tensile Strength ≥20MN/m2
Rated Voltage: 0.6/1KV Elongation ≥200%
Test Voltage 4000V/5min Jacket characteristics Wear resistant, oil resistant, tensile resistant
Temperature -40-80ºC chemical characteristic Acid and alkali resistant,
Hydrolysis resistance
3,Packaging and marking
  1. The cable is used for the storage of dry and non corrosive gases.
  2. Each cable should be accompanied by a certificate of conformity, indicating the name of the manufacturer, model and specification, manufacturing date, the implementation of standards, etc..

PUR Jacket Winding Reels Cable Ts-Crane Hpjmce-0.6/1kv 4X50 mm2 1 PUR Jacket Winding Reels Cable Ts-Crane Hpjmce-0.6/1kv 4X50 mm2 2
