Powering the Future: Shenghua’s AAAC Bare Conductors Revolutionize Grid Reliability​​

Powering the Future: Shenghua’s AAAC Bare Conductors Revolutionize Grid Reliability​​

​​1. The Grid Challenge: Corrosion, Sag, and Efficiency Loss​​

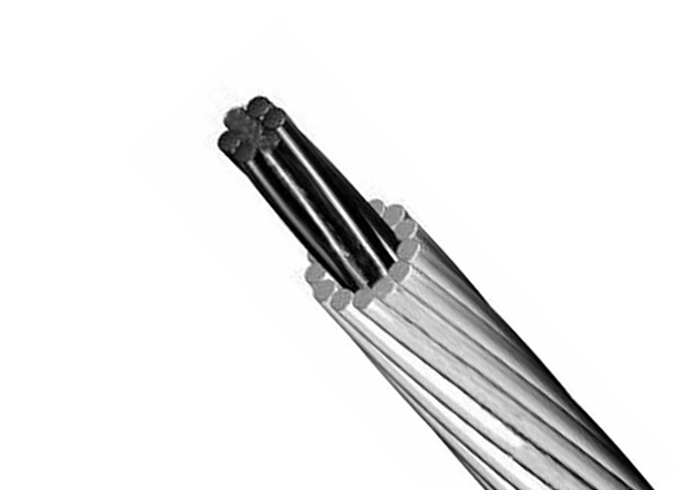

Traditional steel-reinforced conductors (ACSR) face critical limitations:

• ​​Steel corrosion​​ in coastal/industrial zones cuts lifespans to 25 years

• ​​High sag​​ limits span lengths, requiring costly tower reinforcements

• ​​Energy losses​​ from higher resistance drain 3.2 GWh/year per 100km line

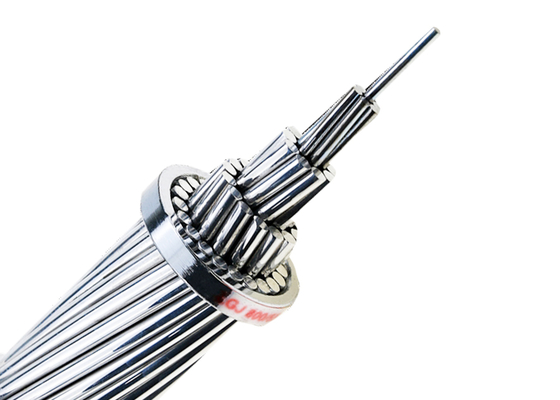

​​Shenghua’s Solution​​: All Aluminum Alloy Conductors (AAAC) eliminate steel cores, using aerospace-grade 6201-T81 alloy for ​​40+ year durability​​, ​​20% lighter weight​​, and ​​0.0334 Ω/km resistance​​—slashing corrosion and energy waste

​​2. Engineering Excellence: Why Shenghua AAAC Dominates​​

​​A. Strength-to-Weight Advantage​​

• ​​Longer Spans​​: Sycamore AAAC (303.2mm²) achieves ​​500m+ spans​​ with 89.4 kN strength—ideal for mountain terrains

• ​​Tower Savings​​: Reduced mass (e.g., Oak AAAC: 324.5 kg/km vs. ACSR’s 400+ kg/km) lowers infrastructure costs


​​B. Zero-Corrosion Design​​

• ​​Galvanic Resistance​​: Salt-spray tests exceed DIN 48204 standards, outperforming ACSR in coastal grids like Southeast Asia


​​C. Electrical & Thermal Efficiency​​

• ​​Low Resistance​​: Redwood AAAC (996.2mm²) delivers ​​0.0334 Ω/km​​—ideal for renewable integration

• ​​150°C Operation​​: Handles desert grid surge currents without degradation


​​3. Global Compliance & Customization​​

• ​​Certifications​​: Meets IEC 61089, BS EN 50183, ASTM B232, and GB/T 1179-2008 for UHV projects

  .
• ​​Custom Builds​​:
  • ​​Sizes​​: 18.8–996.2mm² (e.g., Pine AAAC for Himalayan grids; Araucaria AAAC for wildfire zones)

  • ​​Configurations​​: 7–91 wires for vibration/ice-load resilience


​​4. Applications: Where Shenghua Excels​​

​​5. Why Engineers Trust Shenghua​​

• ​​30+ Years Expertise​​: Supplied 12,000+ km for Asian UHV corridors

  .
• ​​Rigorous Testing​​: Validated for -30°C ice loads, 30M+ vibration cycles, and creep resistance

  .
• ​​Global Logistics​​: 45-day delivery with DNV-certified packaging

  .

​​6. Technical Specs: Shenghua AAAC Range​​
(Key Models Excerpt)
