Shenghua PVC Insulated Cables: Reliable Power Solutions for Indoor/Outdoor Installations

Shenghua PVC Insulated Cables: Reliable Power Solutions for Indoor/Outdoor Installations

In industrial plants, commercial complexes, and infrastructure projects, ​​substandard wiring causes 34% of electrical failures​​, often due to insulation degradation, voltage mismatches, or poor mechanical strength

. Shenghua’s ​​PVC Insulated Cables​​ (0.6/1kV) eliminate these risks with IEC/GB-certified compact stranded copper conductors, flame-retardant PVC insulation, and robust sheathing—ensuring safety in demanding environments from factories to urban grids

​​Engineering Excellence: Triple-Layer Protection​​

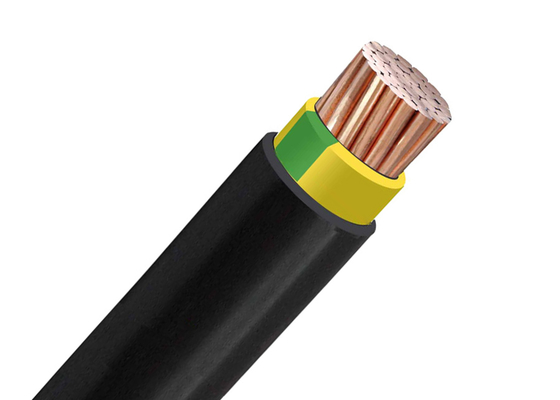

1. ​​Conductor (Compact Stranded Copper, IEC 60228 Class 2)​​:
   • ​​Low Resistance & High Flexibility​​: Stranded design achieves ≤7.41Ω/km resistance (20°C), reducing energy loss by 15% vs. aluminum alternatives. Supports 12× cable diameter bend radius for tight conduit routing

     .
2. ​​Flame-Retardant PVC Insulation (FR-PVC Type ST2)​​:
   • ​​Self-Extinguishing Properties​​: Reduces flame spread by 70% (IEC 60332 compliant), critical for concealed wiring

   • ​​Thermal Stability​​: Withstands 70°C continuous operation, 130°C emergency overloads, and 160°C short-circuit spikes (5s max)

3. ​​PVC Outer Sheath (FR-PVC Type ST2)​​:
   • ​​Chemical & UV Resistance​​: Protects against acids, alkalis, and outdoor weathering (black sheath enhances UV stability)


​​Critical Applications​​

• ​​Industrial Facilities​​:
  Powers machinery in factories with oil/chemical exposure; FR-PVC resists degradation in harsh environments

  .
• ​​Building Infrastructure​​:
  Safe for indoor/outdoor fixed installations (e.g., power distribution panels, lighting circuits), avoiding magnetic ducts per safety protocols

• ​​Commercial Complexes​​:
  Supports HVAC systems and emergency lighting with 160°C short-circuit tolerance


​​Certifications: Global Compliance Assurance​​

Shenghua’s ​​CE, CCC, KEMA, and RoHS​​ certifications validate

• ​​Fire Safety​​: Exceeds GB/T 18380.3-2001 vertical flame tests.
• ​​Eco-Compliance​​: Halogen-free options available (RoHS/REACH compliant).
• ​​Interoperability​​: Compatible with ABB/Siemens switchgear.

​​Technical Edge vs. Generic PVC Cables​​

​​Why Engineers Specify Shenghua​​

1. ​​Safety-First Design​​:
   Flame-retardant FR-PVC insulation reduces fire propagation risks in densely wired buildings

2. ​​Installation Efficiency​​:
   ​​12× bend radius​​ simplifies routing in congested conduits, cutting labor time by 20%

3. ​​Global Adaptability​​:
   Supports IEC, GB, BS, and DIN standards—ideal for multinational projects
